SPN 3251 FMI 0 — DPF Differential Pressure Above Normal (Most Severe)
SPN 3251 FMI 0 means the DPF delta-P sensor is reporting a valid reading that exceeds the most severe calibrated threshold. High differential pressure is most often caused by soot or ash restriction — not automatic sensor failure. Confirm live delta-P, soot load, and regen history before ordering parts.
Fault Overview

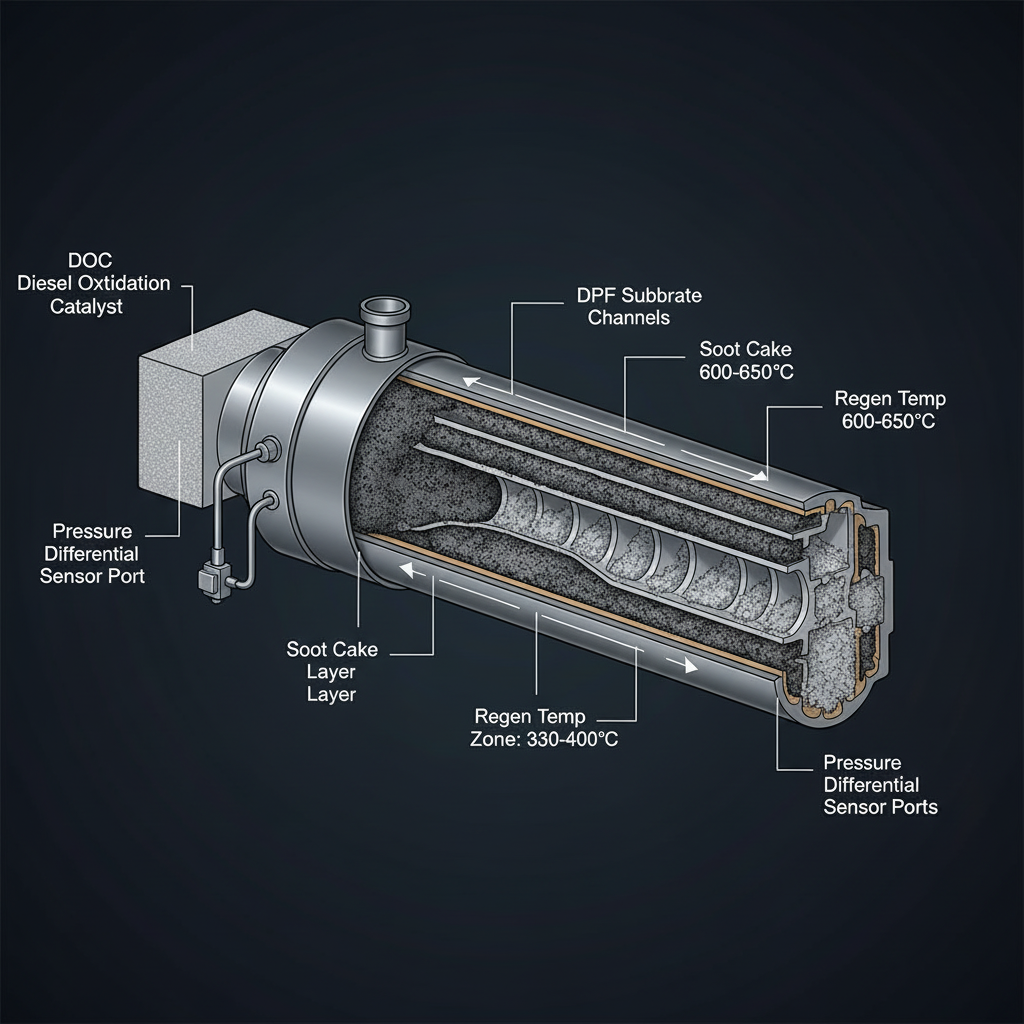

The ECM continuously compares DPF inlet pressure to outlet pressure under specific speed, load, and temperature windows. When the measured differential exceeds the most severe calibrated limit, FMI 0 is set. This is a protection-level fault — the ECM may derate power or inhibit further operation to prevent DPF substrate damage. Common misdiagnosis: replacing the DPF when plugged hoses or an ash-loaded filter are the actual cause. Always verify hose integrity and regen history before condemning the filter.
Engine & Platform Coverage
Symptoms
- •High DPF differential pressure reading on scan tool
- •Failed or aborted active regen cycle
- •Black smoke under load
- •Frequent regen requests
- •Restricted exhaust / high backpressure
- •Power loss on grade or under load
- •Derate or engine protection active
Possible Causes
- 1.Loaded DPF — soot accumulation from incomplete regens or short-trip duty cycle
- 2.Ash interval exceeded — DPF requires cleaning or replacement
- 3.Plugged delta-P hoses or ports — most common misdiagnosis cause
- 4.Damaged or cracked DPF substrate
- 5.Failed delta-P sensor — stuck voltage, no change with restriction
- 6.Upstream soot overproduction — underboost, EGR faults, fueling issues
- 7.Repeated aborted parked regens — operator or inhibit-related
Diagnostic Flow — FSM Sequence
AI Diesel Tech enforces this evidence-gate sequence. Each gate must pass before advancing.
6 steps locked behind Technician Mode- 1Single Action Gate — Code & Freeze Frame: Capture all active codes and freeze frame data. Record soot load %, delta-P live value, and regen history before clearing anything.
- 2Binary Decision Gate — Soot vs Delta-P Agreement: Compare soot load % to delta-P reading. If soot is low but delta-P is high, suspect plugged hoses or sensor. If both are high, restriction is real.
- 3Override Manager — Hose & Port Inspection: Physically inspect both delta-P hose ports at the DPF inlet and outlet. Clean any soot/ash blockage. Inspect hoses for kinks, cracks, or contamination.
- 4Safety Interceptor — Sensor Electrical Verification: Verify 5V reference, ground, and signal circuit. KOEO baseline should be near atmospheric. Stuck voltage or no response to restriction indicates sensor failure.
- 5Resume Point — Regen Abort History Review: Review regen abort history. Identify whether regens are being inhibited by operator, temperature, or system faults. Correct inhibit causes before forcing another regen.
- 6Verification Loop — Upstream Soot Contributors: Check boost levels, EGR operation, and fueling for abnormal soot production. Underboost and EGR faults accelerate DPF loading.
- 7Repair Ledger Output — DPF Service Decision: Service DPF (clean or replace) only after hoses, sensor, regen history, and upstream causes are proven. Document all findings in the repair ledger.
Unlock the full evidence-gated diagnostic sequence, DVOM test steps, and repair procedures in Technician Mode.
Repair Steps
5 steps locked- 1Clean and inspect both delta-P hose ports and hoses — remove any soot or ash blockage.
- 2Replace delta-P sensor if electrical testing confirms failure ($150–$450).
- 3Correct any regen inhibit conditions — operator settings, inhibit switches, or system faults.
- 4Address upstream soot contributors: repair boost leaks, EGR faults, or fueling abnormalities.
- 5Perform a successful parked regen after upstream corrections.
- 6If soot load remains high after successful regen, perform DPF cleaning ($400–$1,200).
- 7Replace DPF only if cleaning fails or substrate is physically damaged ($2,500–$7,000+).
Unlock full diagnostic steps, DVOM tests, and repair procedures.
Full Diagnostic Access
Verification steps, preventative measures, severity guidance, and legacy comparison are available in Technician Mode.
Start Diagnosing This Fault Now
AI Diesel Tech walks you through every evidence gate in the correct order. Choose the plan that fits your shop.
Related Resources
Related Fault Codes
Related Systems
Related Fault Codes
Related Sensor Locations
Common Symptoms
AI Diesel Tech — The Technician's Diagnostic Engine
AI Diesel Tech diagnostic logic is built by an ASE Certified Diesel Technician and engineered for professional shop use. Trusted by technicians nationwide — used in shops, fleets, and training programs.
Summary
SPN 3251 FMI 0 is a severe high DPF differential pressure fault. Before replacing any hardware, prove hose/port integrity, sensor electrical function, regen history, and upstream soot contributors. The AI Diesel Tech FSM enforces this evidence-gate sequence and prevents costly misdiagnosis.
