SPN 4364 FMI 18 — SCR Conversion Efficiency Below Normal
SPN 4364 FMI 18 means the SCR catalyst is not converting enough NOx — the measured efficiency is below the calibrated threshold under valid operating conditions. This is a system-level diagnosis. Replacing the SCR catalyst without first proving DEF quality, dosing, and NOx sensor integrity is the most common and costly misdiagnosis on this fault.
Fault Overview

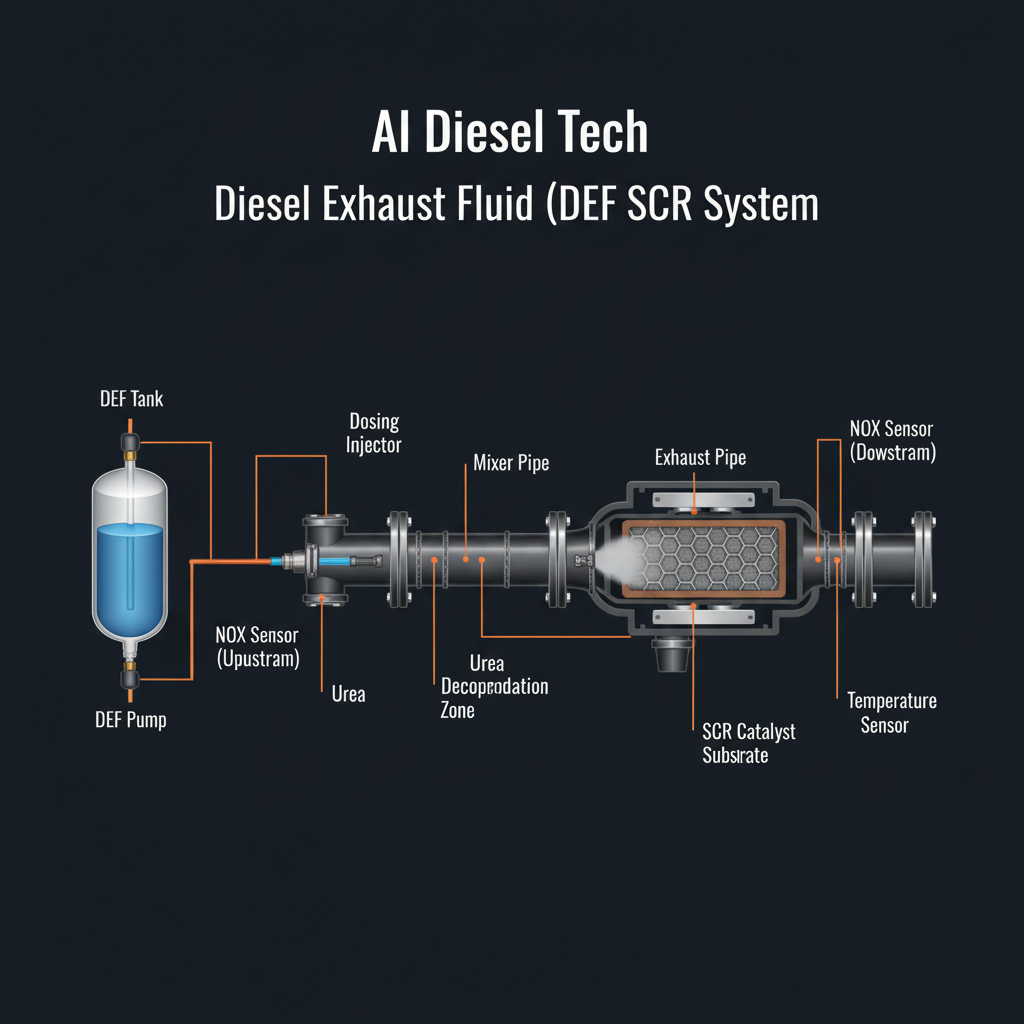

The ECM calculates SCR conversion efficiency by comparing upstream NOx (SPN 3216) to downstream NOx (SPN 3226) under defined temperature and load windows. When the ratio falls below the calibrated minimum, FMI 18 is set. If unresolved, this fault escalates to SPN 5246 (inducement). The vast majority of efficiency faults are caused by DEF chemistry, dosing path issues, or NOx sensor drift — not catalyst failure.
Engine & Platform Coverage
Symptoms
- •SCR efficiency low warning or derate
- •Poor NOx conversion on scan tool data
- •DEF underperforming despite good fluid
- •Escalation to SPN 5246 inducement
- •Upstream and downstream NOx readings not correlating
- •Efficiency derate under load
Possible Causes
- 1.Contaminated or diluted DEF — most common cause (test first)
- 2.Clogged DEF dosing injector — insufficient DEF reaching catalyst
- 3.Failed upstream NOx sensor — false high NOx reading skews efficiency calculation
- 4.Failed downstream NOx sensor — false high reading after catalyst
- 5.DEF pump low pressure — insufficient DEF flow to doser
- 6.Exhaust leak between upstream and downstream NOx sensors — dilutes exhaust
- 7.SCR catalyst contamination or failure — last resort after upstream proven good
Diagnostic Flow — FSM Sequence
AI Diesel Tech enforces this evidence-gate sequence. Each gate must pass before advancing.
6 steps locked behind Technician Mode- 1Single Action Gate — Exhaust Leak Check: Inspect for exhaust leaks between the upstream and downstream NOx sensors. A leak dilutes exhaust and creates a false efficiency reading without any hardware failure.
- 2Binary Decision Gate — DEF Concentration: Test DEF with a refractometer. Target: ~32.5% urea. Replace DEF if out of spec. This single step resolves a large percentage of efficiency faults.
- 3Override Manager — Dosing Command vs Actual: Compare commanded dosing quantity to actual delivery using scan tool PIDs. Discrepancy indicates pump pressure, filter restriction, or doser nozzle issue.
- 4Safety Interceptor — NOx Sensor Correlation: Monitor upstream and downstream NOx at operating temperature. Upstream should be significantly higher than downstream after the SCR. If both read the same, one sensor has failed.
- 5Resume Point — Temperature Enable Conditions: Verify SCR inlet temperature is within the enable window for efficiency monitoring. Cold operation or failed exhaust temp sensors can cause false efficiency faults.
- 6Verification Loop — Post-Repair Efficiency Check: After DEF, dosing, and sensor corrections, monitor efficiency under load. Efficiency must return to threshold before clearing codes.
- 7Repair Ledger Output — Catalyst Decision: Evaluate SCR catalyst only after all upstream causes are proven good. Catalyst replacement is rare and expensive ($2,000–$8,000+).
Unlock the full evidence-gated diagnostic sequence, DVOM test steps, and repair procedures in Technician Mode.
Repair Steps
5 steps locked- 1Inspect for exhaust leaks between NOx sensors and repair any found.
- 2Test and replace DEF if concentration is out of spec.
- 3Service or replace DEF dosing injector if crystallization or flow restriction is found.
- 4Verify DEF pump pressure meets OEM specification; replace pump if low.
- 5Replace failed NOx sensor (upstream or downstream) after electrical confirmation.
- 6Perform a forced regen and monitor efficiency improvement.
- 7Replace SCR catalyst only after all upstream causes are confirmed good.
Unlock full diagnostic steps, DVOM tests, and repair procedures.
Full Diagnostic Access
Verification steps, preventative measures, severity guidance, and legacy comparison are available in Technician Mode.
Start Diagnosing This Fault Now
AI Diesel Tech walks you through every evidence gate in the correct order. Choose the plan that fits your shop.
Related Resources
Related Fault Codes
Related Systems
Related Fault Codes
Related Sensor Locations
Common Symptoms
Related Articles
AI Diesel Tech — The Technician's Diagnostic Engine
AI Diesel Tech diagnostic logic is built by an ASE Certified Diesel Technician and engineered for professional shop use. Trusted by technicians nationwide — used in shops, fleets, and training programs.
Summary
SPN 4364 FMI 18 is a system-level efficiency diagnosis — not a single-part code. Prove DEF chemistry, dosing path, NOx sensor integrity, and exhaust leak absence before evaluating the catalyst. The AI Diesel Tech FSM blocks the catalyst-first path until all upstream gates pass.
